Thermal Risk Dashboard

Kite’s Thermal Risk Dashboard is the first step in setting up an organisation’s heat management. It allows organisations to identify those workers at risk of potential heat stress by creating Thermal Risk Assessments. These assessments define base risk values for different worker groups, called SEGs (Similar Exposure Groups) and identify their risk of heat stress for each month of the year.

The Thermal Risk Assessment follows the methodology determined by the Australian Industrial Occupations Hygienists.

Thermal Risk Assessments can be created for both groups of workers and specific tasks, to determine their potential for heat stress. For each assessment you will provide information about the group/task by selecting options from dropdown menus, with each option having a risk value ranging from 0 (low risk) to 3 (high risk).

These values will be added up to calculate the Base Risk Value for the group/task, and this is used to determine the forecasted heat risk based on 45 years of past data.

This data can be used to identify the worker groups that are at risk of illness and who may require additional heat management controls during high risk times of the year.

Dashboard Features

A table is displayed showing recorded Thermal Risk Assessments, with the following fields:

  • Assessment Name - this must be unique and should clearly define the group being assessed.

  • Creation Time - the date and time the assessment was created.

  • User - the user who created the assessment.

  • Base Risk - the base risk value for the assessment.

  • Buttons to view or delete the thermal risk assessment.

This dashboard also provides the ability to search past assessments using the search bar in the top right corner. You can search based on any of the fields mentioned above.

Creating a New Assessment

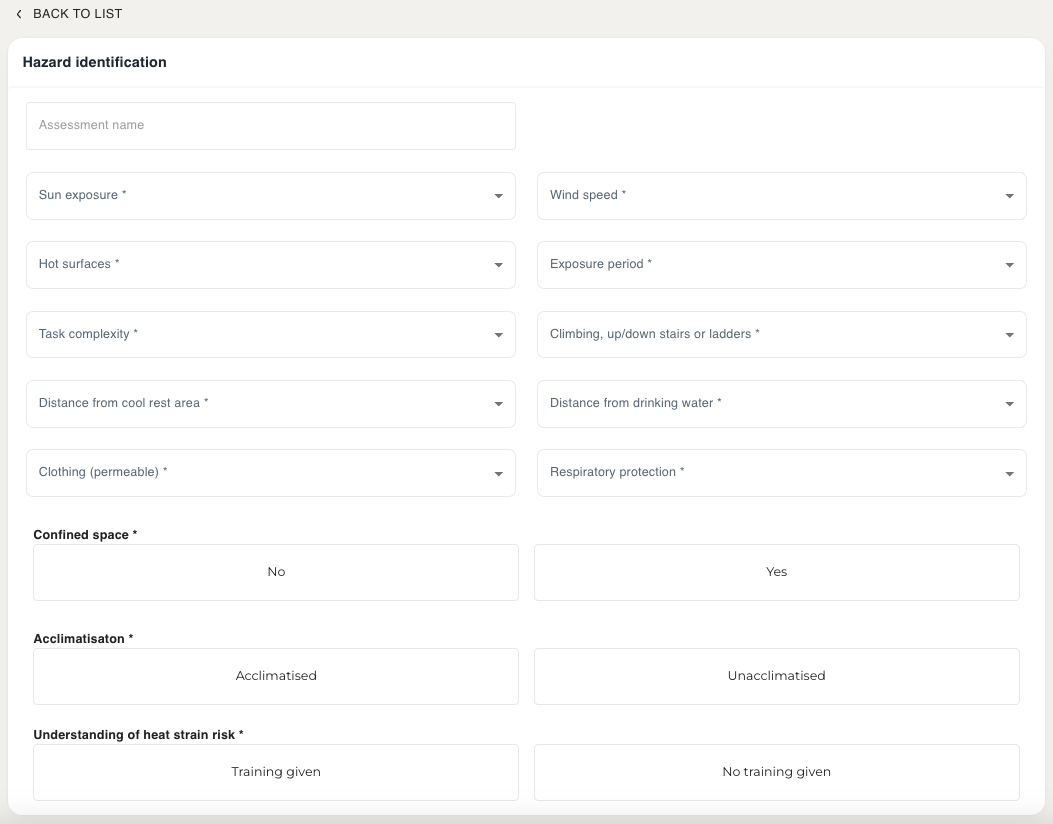

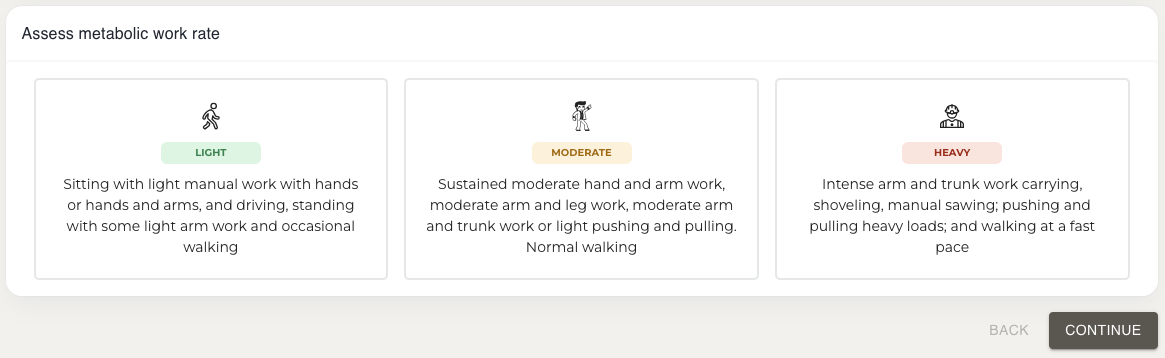

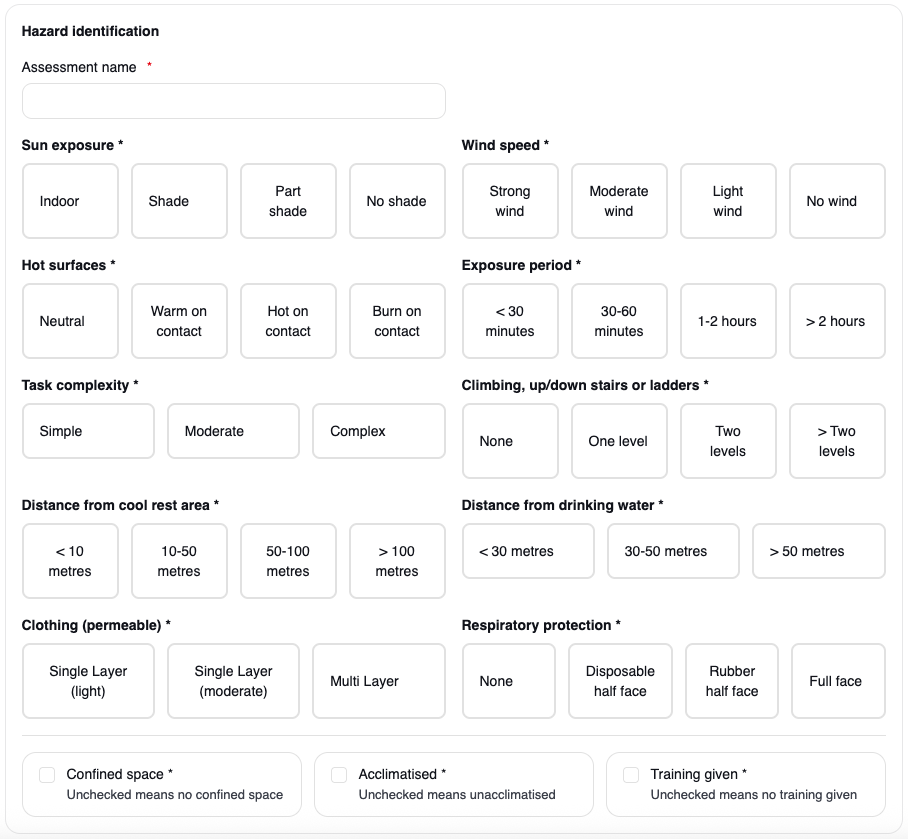

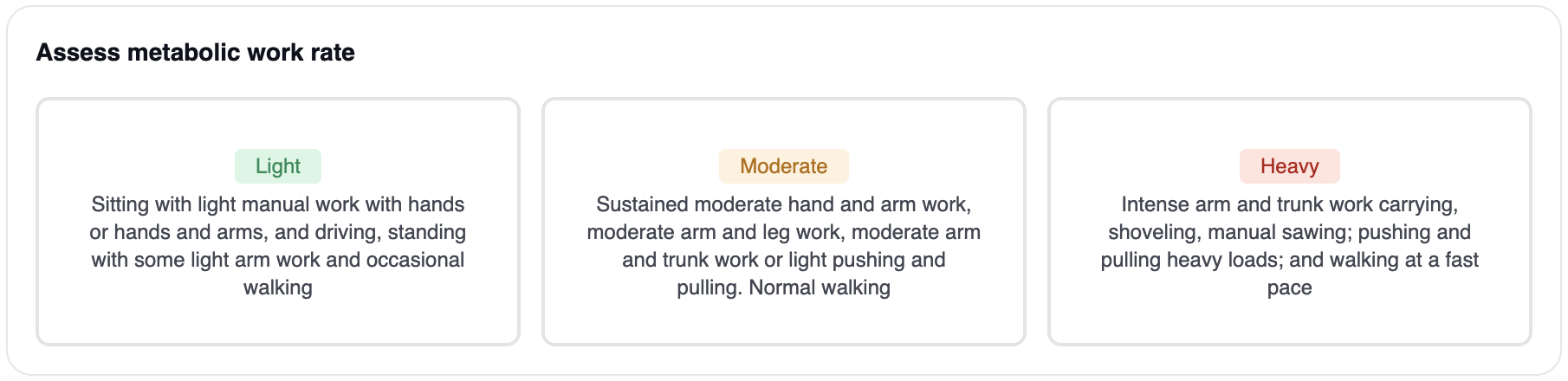

To create a new assessment, first select the + New Assessment button in the top right corner of the dashboard page. You’ll be taken to the Hazard Identification page shown below. Fill out the fields (those with a star * are required) and select Continue.

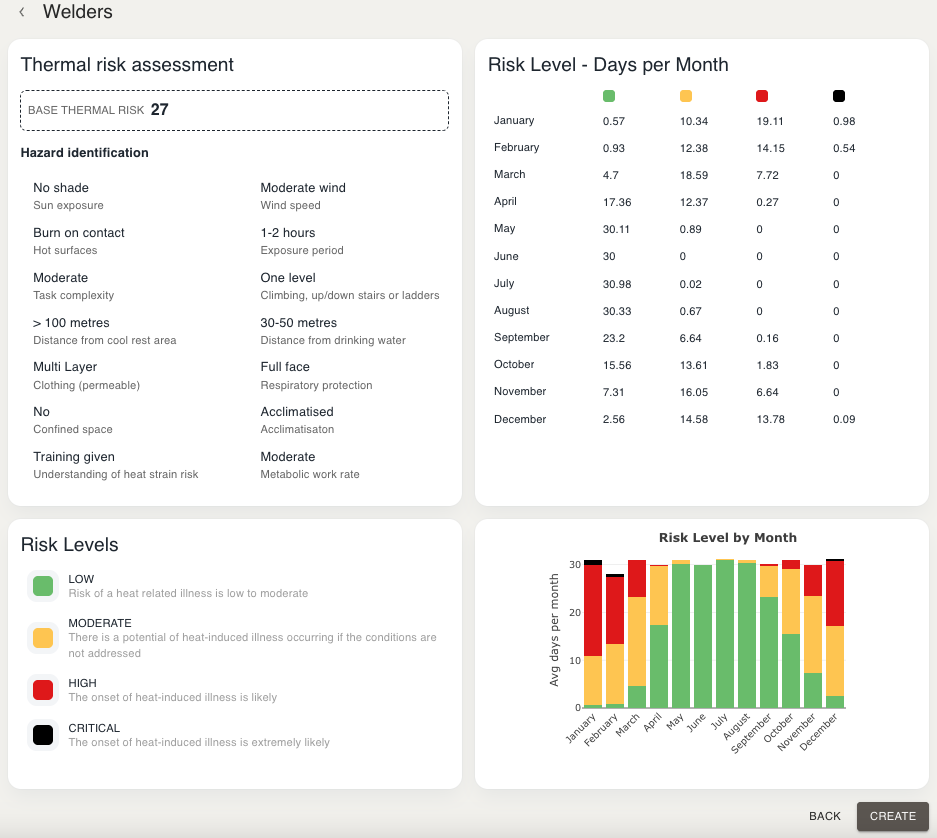

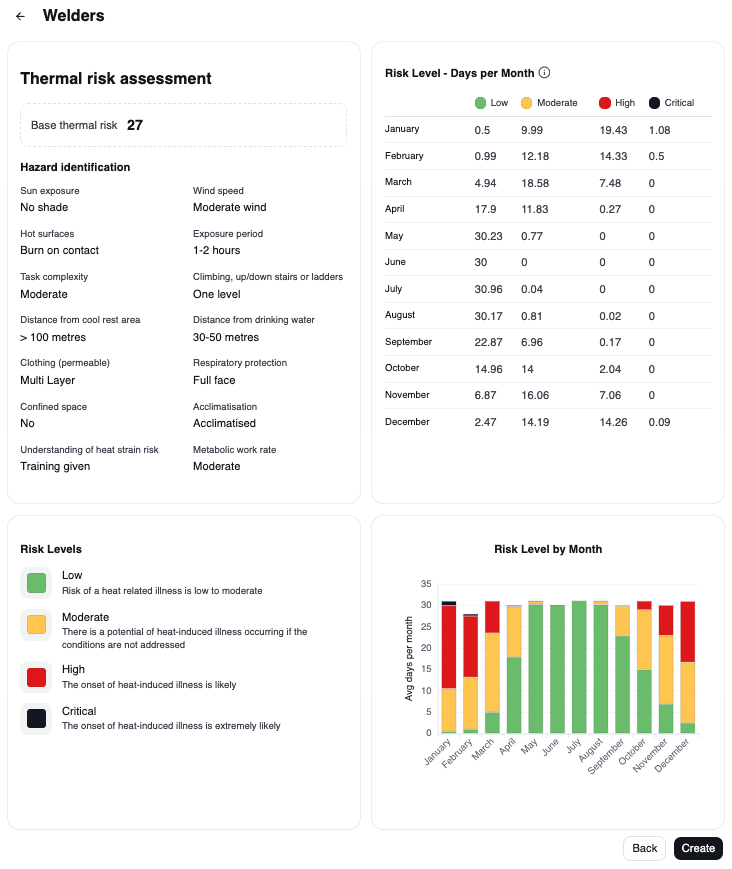

You’ll now be shown a preview of your Thermal Risk Assessment. If you would like to change anything, select the Back button at the bottom of the page. If you want to save your assessment as it is, select the Create button.


The Thermal Risk Calculator

You can calculate the current thermal risk at a moment in time for a certain group represented in a risk assessment using the Calculator.

To access this, select the eye icon next to the risk assessment for a group of workers to view its full information. Then select the Calculator button in the top right-hand corner of the screen.

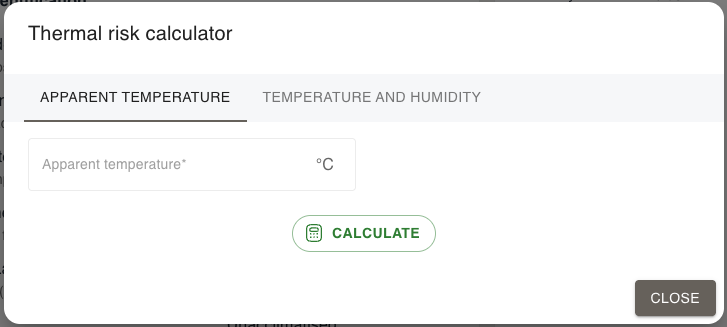

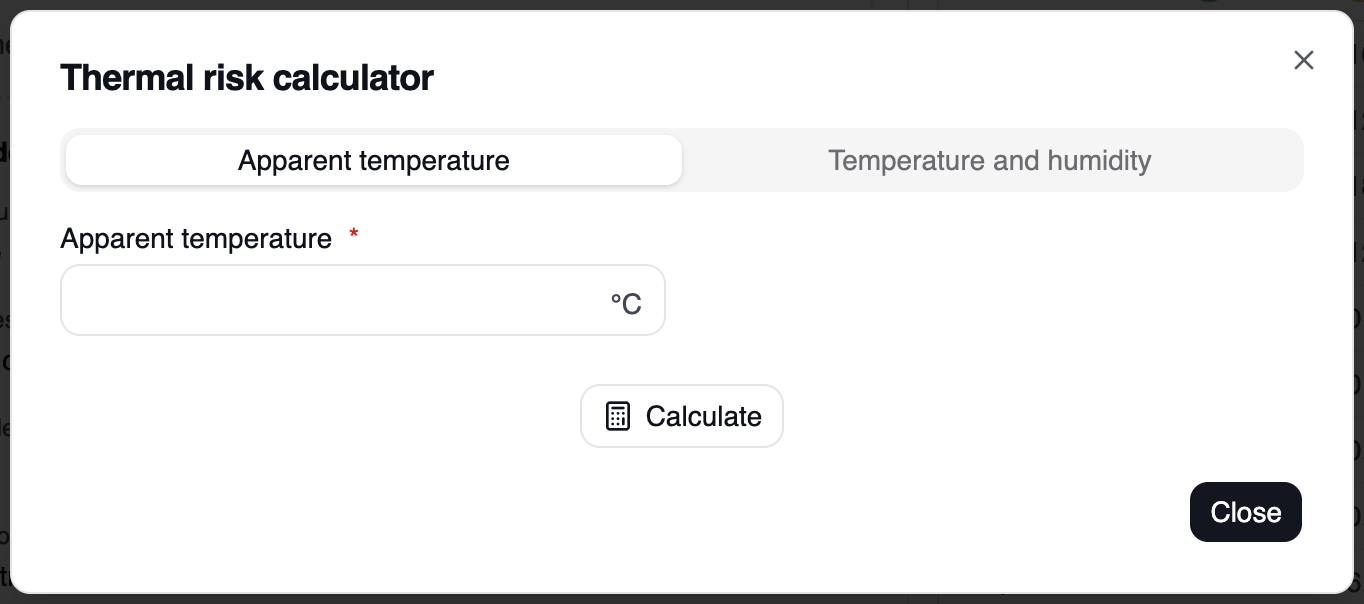

The calculator should look like this:


You can then enter either:

  1. The current apparent temperature, or

  2. The current temperature and humidity

Then select Calculate. It will calculate for you:

  1. The risk value,

  2. The corresponding risk level (low, moderate, high or critical), and

  3. The description of the risk for the selected group of workers, in the specified conditions.

You can therefore use this to determine workers' risks in different temperatures and humidities, so you can predict and monitor risk throughout the day and implement appropriate safety measures.
